Angular elements of Missouri AC 120 model range allow building lines of any complexity and structure.
- Fits with plug-in
- Dynamic or static cooling
- Uplift and holding of front glass with the help of gas-lift system
- Inner enclosure LED lighting
- Additional refrigerated box
 |
 |
 |
 Missouri АC 120 deli PS 130-DBА-IS90
(аrticle: 1397.А.00)
|
 |
Missouri AC 120 deli PS 130-DLA-ES90
(аrticle: 1380.А.00)
|
 |

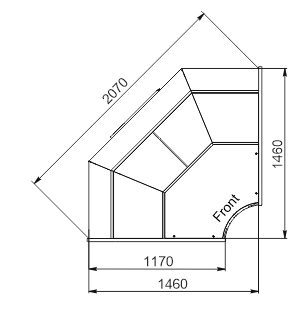

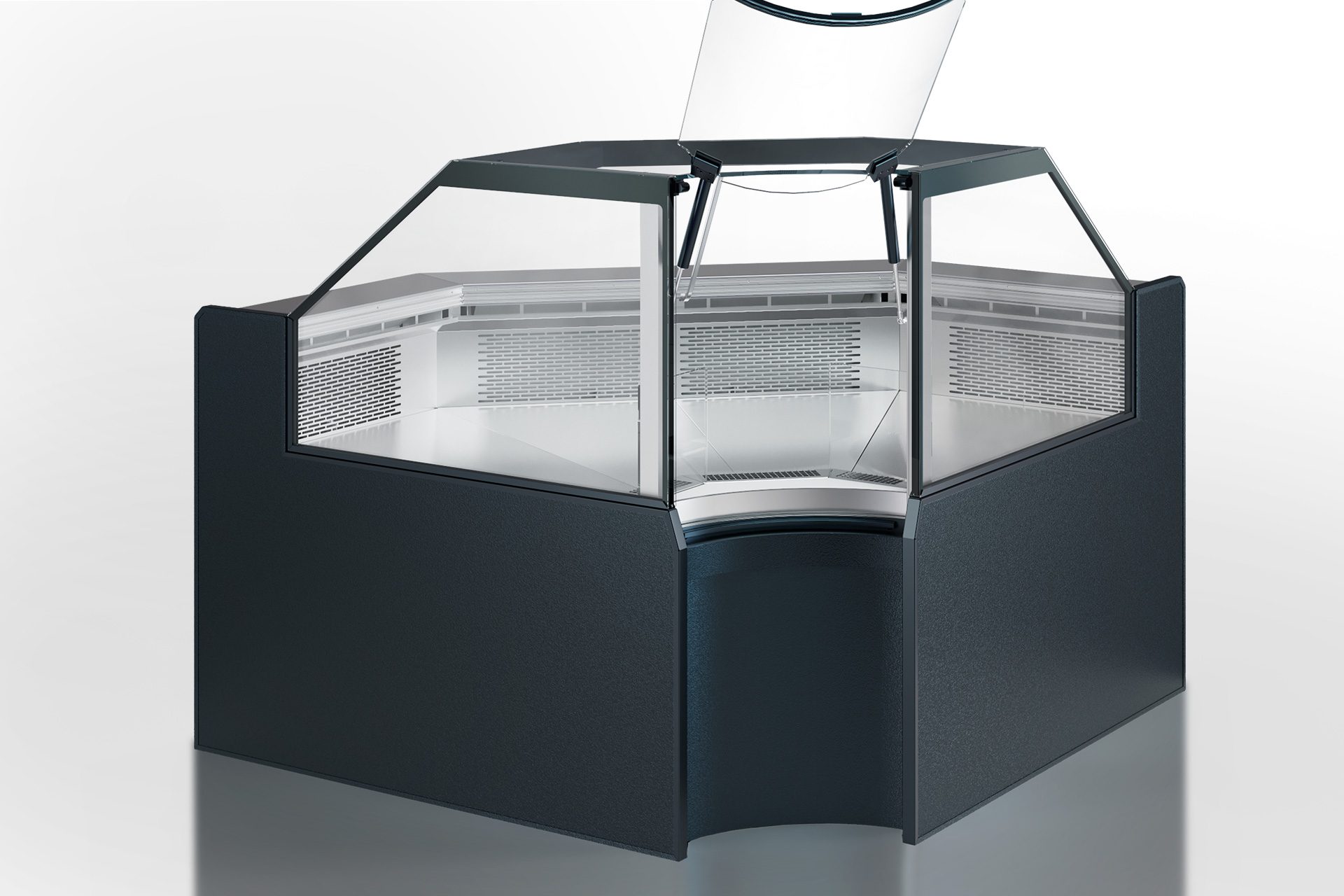

Missouri АC 120 deli PS 130-DBА-IR90
(аrticle: 1705.А.00)
|
 |
 Missouri АC 120 deli PS 130-SBА-IS90
(аrticle: 1353.А.00)
|
 |
 Missouri АC 120 deli PS 130-DBА-IS90
(аrticle: 1397.А.00)
|
 |
 Missouri AC 120 deli PS 130-DLM-IS45
(аrticle: 1693.00)
|
 |
 Missouri АC 120 deli PS 130-DLА-EL90
(аrticle: 1576.А.00)
|
 |
|
Missouri AC 120 deli self 092-DLA-ES90
(аrticle: 1382.А.00 self)
|
 |

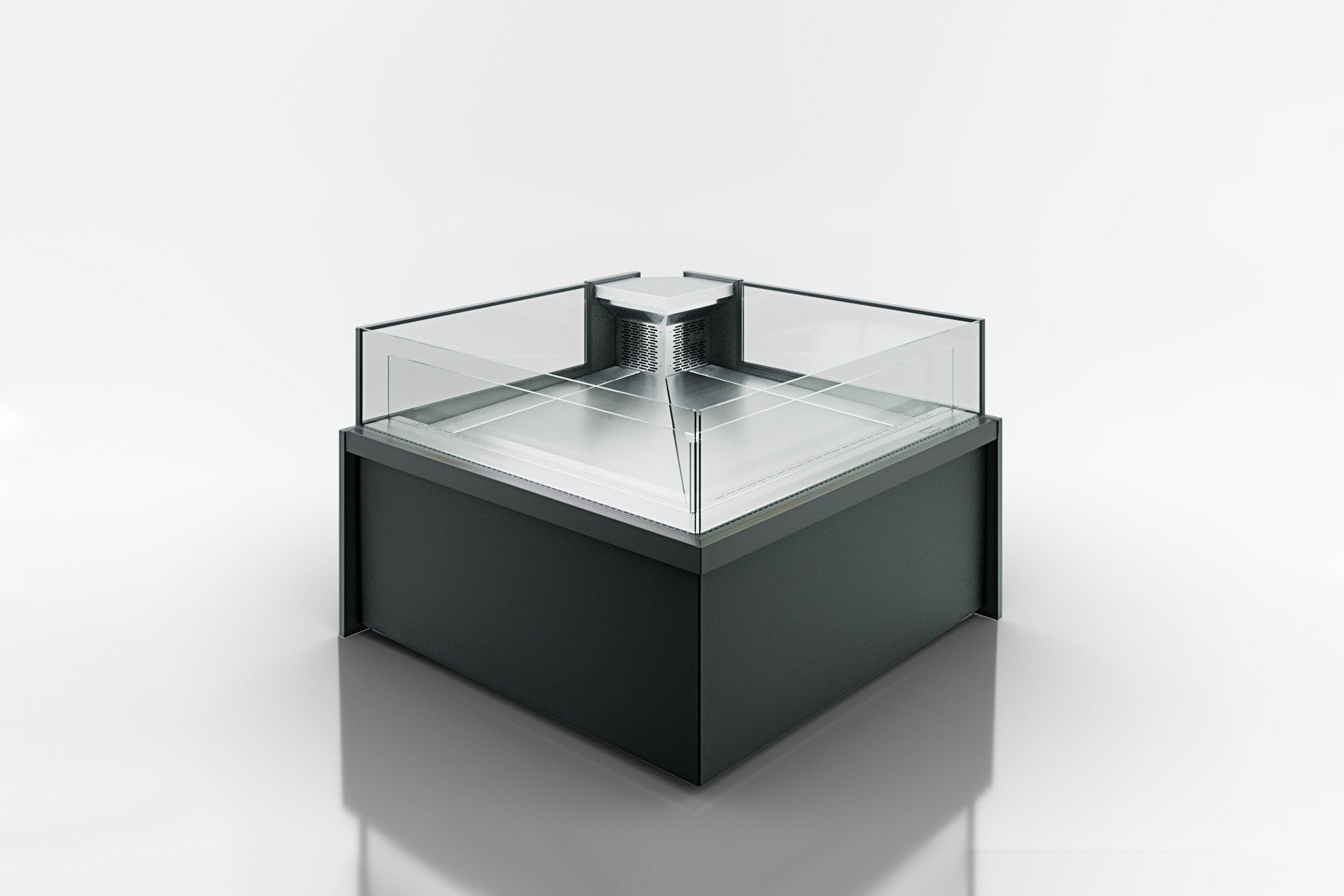

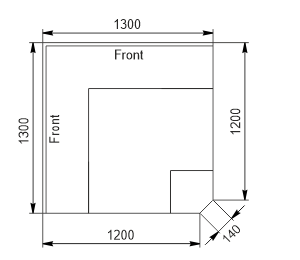

 Missouri AC 120 deli self 092-DLA-EL90
(аrticle: 1746.А.00)
|
 |
Missouri АC 120 deli self 092-DBА-IS90
(аrticle: 1396.А.00 self)
|
 |
|
Missouri AC 120 deli PP 130-DLA-ES90
(аrticle: 1382.А.00)
|
 |
 Missouri АC 120 deli PP 130-SBА-IS90
(аrticle: 1416.А.00)
|
 |
|
Missouri АC 120 deli PP 130-DBА-IS90
(аrticle: 1396.А.00)
|
 |
The Manufacturer reserves the right to make alterations in the specifications.
| Missouri АC 120 deli PS 130 / Missouri АC 120 deli PP 130 | Missouri АC 120 deli self 092 | Missouri АC 120 deli PS 130 | Missouri АC 120 deli PS 130 / Missouri АC 120 deli PP 130 | Missouri АC 120 deli PS 130 | Missouri АC 120 deli PS 130 | ||||||
| Angular elements | DLA-ES90 | DBA-IS90 (1397) |
DBА-IR90 (1705) |
DBA-ES90 | DBА-IS90 | DLA-EL90 (1746.00) | DLM-IS45 | SBА-IS90 | DLА-EL90 | DLA-ER90 | |
| Thickness of two sidewalls | mm | 60 | 60 | 60 | 60 | 60 | 60 | ||||
| Area of display part | m2 | 1,34 | 1,36 | 1,36 | 1,34 | 1,36 | 1,1 | 0,8 | 1,1 | 1,1 | 1,2 |
| Refrigerated box capacity | l | – | 106 | 106 | – | 106 | – | 278 | – | – | |
| Ambient temperature | ˚С | ≤ +25 | ≤ +25 | ≤ +25 | ≤ +25 | ≤ +25 | ≤ +25 | ||||
| Humidity | % | ≤ 60 | ≤ 60 | ≤ 60 | ≤ 60 | ≤ 60 | ≤ 60 | ||||
| Air velocity | m/s | – | – | – | ≤ 0,2 | ≤ 0,2 | ≤ 0,2 | – | – | – | – |
| Operating temperature | ˚С | 0…+2 /+2…+4 | 0…+2 /+2…+4 | 0…+2 /+2…+4 | +2…+4 | +2…+4 | +2…+4 | 0…+2 /+2…+4 | 0…+2 /+2…+4 | +2…+4 | 0…+2 /+2…+4 |
| Temperature class | М1/М2 | М2 | М2 | М1/М2 | М1/М2 | М2 | М1/М2 | ||||
The Manufacturer reserves the right to make alterations in the specifications.
