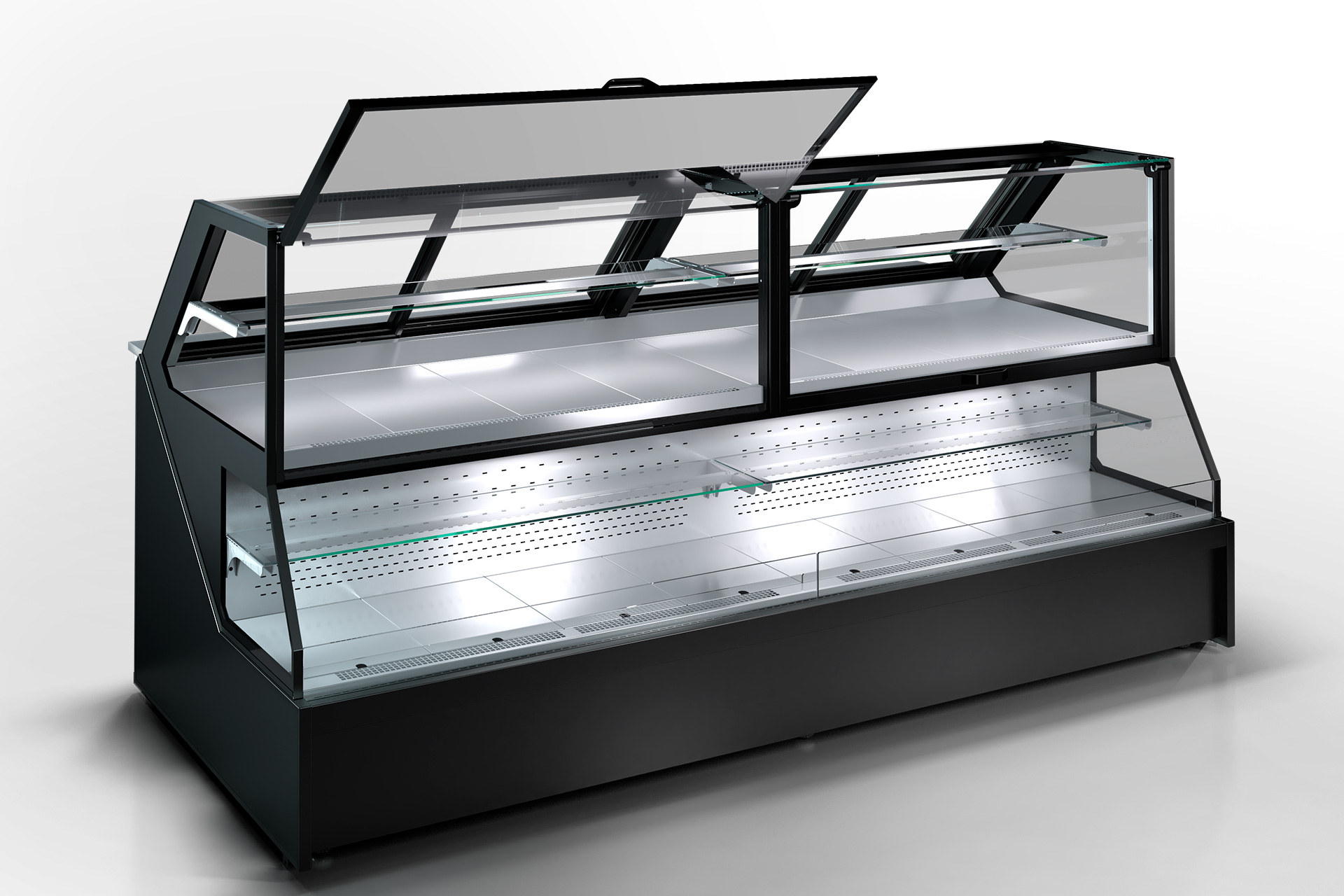

Missouri MC 120 combi PSPD/self M/A

/, Missouri MC 120 M/Missouri MC 120 combi PSPD/self M/A
Two ways of selling in one counter:
-for selling products by weight with the assistance of a salesperson (“serve-over”);
-for selling packaged products in self-service mode (“self-service”).

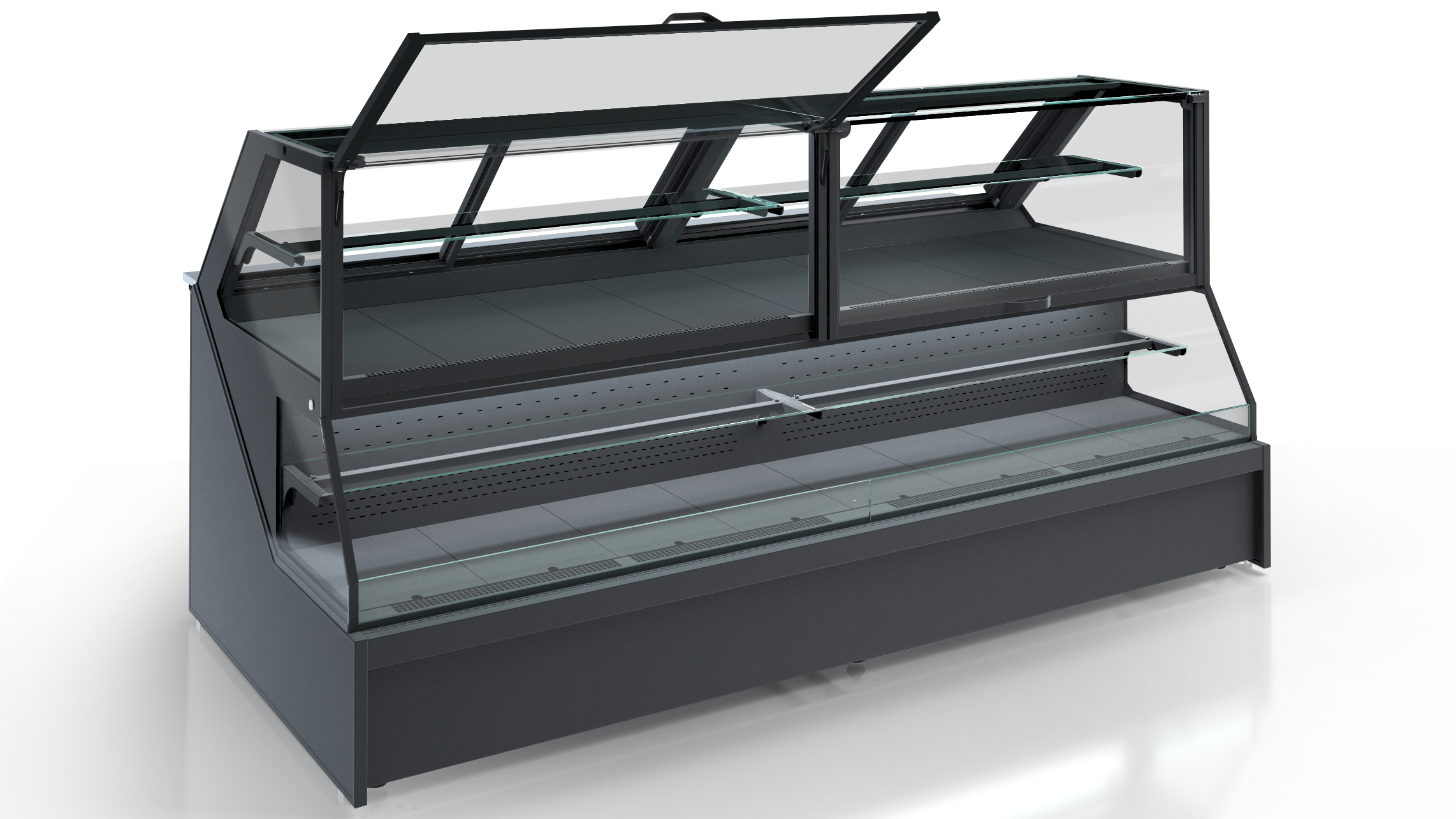

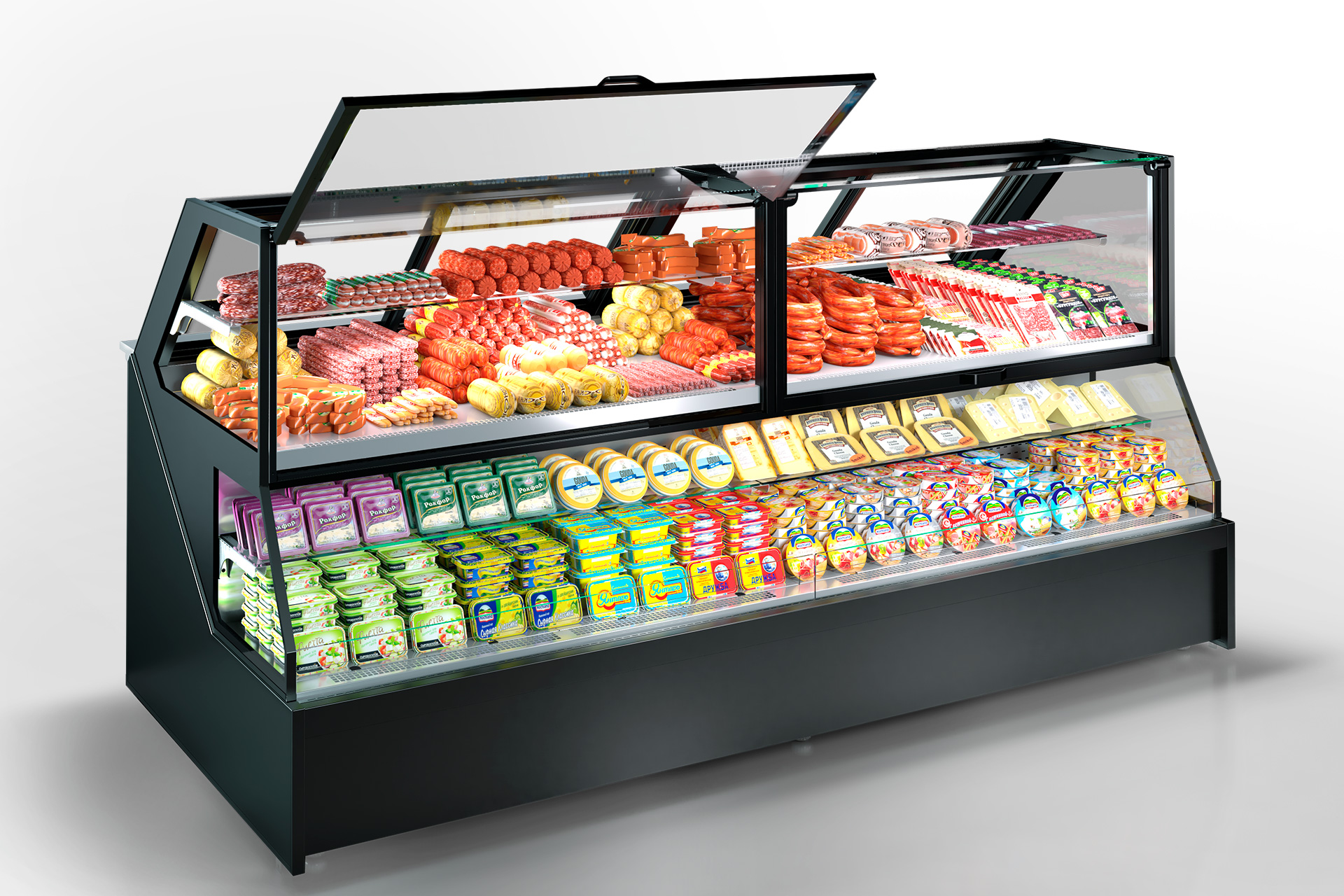

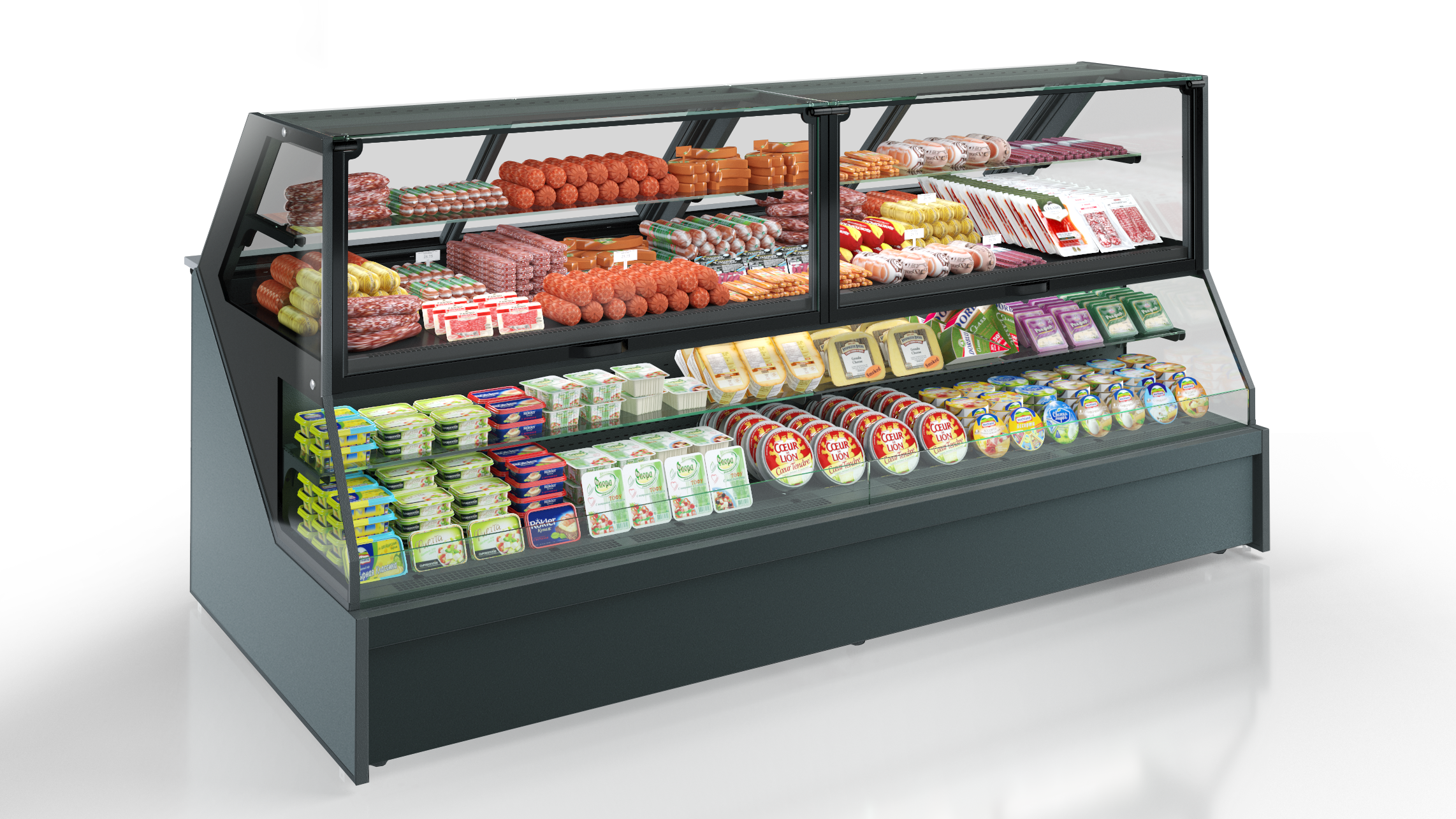

Refrigerated counters Missouri MC 120 combi PSPD/self 130-DBM
Medium-temperature combined refrigerated counter.
Two ways of selling in one counter:
-for selling products by weight with the assistance of a salesperson (“serve-over”);
-for selling packaged products in self-service mode (“self-service”).
  • Connects to the remote refrigeration system
  • Dynamic cooling
  • Front screen: double glazed
  • Double glazed rear sliding doors
  • Modifications: with/without additional refrigerated box
Delicatessen Cheese Ready-to-serve food

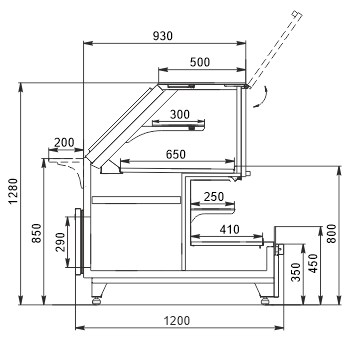

Visualizations and schemes

Refrigerated counters Missouri MC 120 combi PSPD/self 130-DBMMissouri MC 120 combi PSPD/self 130-DBM
(article: 1723.XX)
Missouri MC 120 combi PSPD/self 130-DLAMissouri MC 120 combi PSPD/self 130-DLA
(article: 1739.XX)
Refrigerated counters Missouri MC 120 combi PSPD/self 130-DBM

The Manufacturer reserves the right to make alterations in the specifications.

Specifications

   Missouri MC 120 combi PSPD/self 130-DBM (1723)
Length without sidewalls mm 1250* 1500* 1875* 2500 3750*
Thickness of two sidewalls mm 60
Area of display part m2 2,0 2,5 3,0 4,0 6,0
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s ≤ 0,2
Operating temperature ˚С 0…+2/+2 …+4
Temperature class M1/M2
   Missouri MC 120 combi PSPD/self 130-DLA (1739)
Length without sidewalls mm 1250* 1500* 1875* 2500 3750*
Thickness of two sidewalls mm 60
Area of display part m2 2,0 2,5 3,0 4,0 6,0
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s ≤ 0,2
Operating temperature ˚С 0…+2/+2 …+4
Temperature class M1/M2

* – it requires an additional agreement (marked in red)
The Manufacturer reserves the right to make alterations in the specifications.
